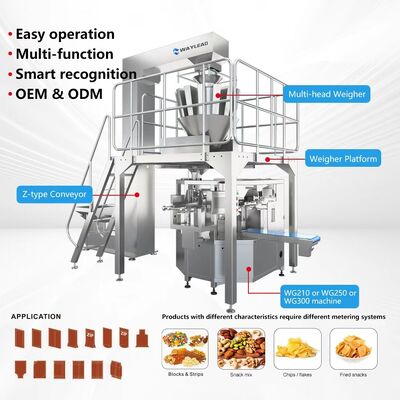

Automatic Granule Packing Machine Multi-function Doypack Packaging Equipment
| एमओक्यू: | 1 |
| कीमत: | Negotiations |
| मानक पैकेजिंग: | शिपिंग के लिए अंतर्राष्ट्रीय मानक पैकेजिंग |
| वितरण अवधि: | 30 दिन |
| भुगतान विधि: | एल/सी, टी/टी, वेस्टर्न यूनियन |
| आपूर्ति क्षमता: | प्रति वर्ष 300 सेट |
विस्तृत जानकारी
उत्पत्ति के प्लेस
शंघाई
ब्रांड नाम
Waylead
प्रमाणन
/
मॉडल संख्या
डब्ल्यूजी-250
दस्तावेज़
पैकिंग की गति:
≦70 बैग/मिनट
बैग का आकार:
लंबाई:≦400मिमी चौड़ाई:130-260मिमी
फ़िल्म सामग्री:
फ्लैट बैग, स्टैंड-अप पाउच, ज़िपर बैग, मिश्रित फिल्म पाउच, और अन्य प्रकार।
बिजली की आपूर्ति:
380V
वायु की खपत:
5-7 किग्रा/सेमी2; 0.4m3/मिनट
शक्ति का प्रकार:
बिजली
बिजली की खपत:
8 किलोवाट
सामग्री:
स्टियानलेस स्टील
पैकेजिंग रेंज:
कणिकाओं पाउडर तरल
उत्पाद का वर्णन
This automatic granule packing machine is a dedicated equipment for granular material packaging, with high-precision volumetric cup or weighing metering system optional. It can accurately complete quantitative filling for granular materials such as grains, seasonings, small hardware parts, with a metering error controlled within ±1%. The machine can automatically complete the whole processes of bag making, metering, filling, sealing, coding and finished product cutting, and it can produce different bag types such as back-seal bags, side-seal bags and triangular bags. The operation interface is intuitive and easy to learn, and operators can complete parameter setting in a very short time. The machine has a wide range of adaptability, and it can run stably for a long time even in small factories with limited site conditions. We provide on-site installation and worker training services to help users quickly put the equipment into production..
Technical Specifications
| Model | WG-210 | WG-250 | WG-300 |
|---|---|---|---|
| Bag Size | Length: 120-380mm Width: 90-210mm |
Length: ≤400mm Width: 130-260mm |
Length: ≤400mm Width: 160-300mm |
| Packing Speed | ≤70 bags/min | ≤70 bags/min | ≤65 bags/min |
| Work Stations | 8 | 8 | 8 |
| Packaging Formats | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches | Flat bags, stand-up pouches, zipper bags, composite film pouches |
| Power Supply | 380V | 380V | 380V |
| Total Power | 8Kw | 8Kw | 8Kw |
| Air Consumption | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min | 5-7kg/cm²; 0.4m³/min |
| Film Material | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films | Single PE, PE composite film, paper film, various composite films |
| Machine Weight | 500kg | 580kg | 850kg |
| Machine Dimensions | 1700*1140*1470 mm | 1850*1250*1520 mm | 2100*1500*1520 mm |
Application Range
Block Items
Candy, chocolate, rock candy, biscuits, pastries, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed foods, daily necessitiesParticles
MSG, chicken essence, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materialsPowders
Condiments, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticides, fertilizers, chemical raw materialsLiquids
Rice wine, soy sauce, rice vinegar, juice, beverages, detergentsSauces
Tomato sauce, peanut butter, jam, chili sauce, bean pasteOther Materials
Various other products suitable for bagging Advantage Features
- Designed in accordance with GMP standards and CE certified
- Full servo control system for reliable, fast, and precise operation
- Empty bag tracking and monitoring device prevents sealing without bag opening, saving packaging materials
- Eight-station structure with centralized control via programmable PLC and six flat touch screens for simple operation
Complete Packaging Machine Range
Shanghai Waylead Intelligent Technology Co.,Ltd. is specialized in turn-key solutions for packaging processing projects and fruit/vegetable processing lines. The company focuses on packaging equipment, robot applications, fruit and vegetable processing equipment, etc., and is committed to the fruit and vegetable processing industry, baking industry, snack food industry, freeze-drying industry, and powder industry. sauce industry, hardware chemical industry and other one-stop professional services.
Our comprehensive packaging solutions include VFFS machines, flow wrapping machines, heat shrink packaging, pouch packing machines, and complete automated packaging lines with weight inspection, metal detection, carton packing, sealing, coding, and palletizing systems.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer, providing quality products at factory price. Welcome to visit us!
What quality guarantee or warranty do you provide?
We provide high-quality machines with a 3-year warranty and lifetime technical support.
When can I get the machine after payment?
Delivery time depends on the specific machine model ordered.
How do you provide technical support?
24/7 support via phone, email, or messaging platforms; installation guides and videos; overseas engineering services available.
How does your after-sales service work?
Machines are pre-adjusted before shipment with free training available. Lifetime technical support provided via multiple communication channels.
How about spare parts?
We provide a comprehensive spare parts list for reference.
Can you help with custom design requirements?
Customized design available with our experienced mechanical engineers.
Can you help analyze and design machines for new product samples?
Yes, our technical department can analyze, design, and test new products you provide.
How do I start an order?
30% deposit after signing contract, production arrangement, pre-shipment testing and inspection, balance payment before shipment.
Can you send product catalog and price list?
Electronic catalog available. Please consult us for specific product pricing.
Can I visit your factory?
Yes, welcome to visit our factory at Room 304, Wanchuangfang, No.155 Anzhi Road, Jiading District, Shanghai, China.
