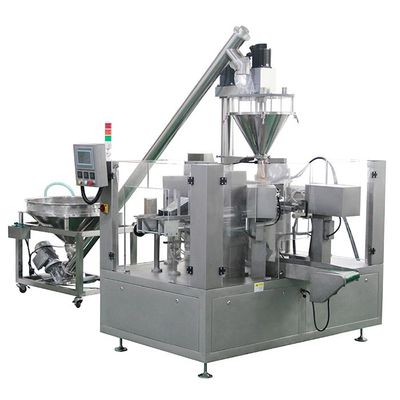

Fully Automatic Doypack Packing Line – Integrated Stand-up Pouch Filling, Sealing

Complete End-to-End Doypack Packaging System from Unpacked Bags to Packed Cartons

For high volume producers requiring maximum efficiency, individual doypack packing machines are not enough. You need a fully integrated doypack packing line that moves your product from bulk form to shelf-ready cartons with minimal human intervention. Our fully automatic doypack packing line connects a doypack packing machine with a multi-head weigher, checkweigher, metal detector, and cartoner. The entire doypack packing line operates under central PLC control with real time production data reporting. Speeds range from 40 to 100 doypacks per minute depending on bag size and product type.

Why Doypack Packing Line for High Volume Production

The doypack, or stand-up pouch, has become the standard packaging format for premium retail products. A dedicated doypack packing line ensures consistent seal quality, accurate fill weights, and high throughput. Our doypack packing machines are specifically designed with bottom spreading devices that properly open the gusseted bottom of stand-up pouches, a critical feature that generic pre-made pouch machines may lack.

Line Components for Doypack Packing

Multi-head Weigher for Precise Doypack Filling
The doypack packing line starts with a 10, 14, or 20 head combination weigher. Product is elevated to the weigher via a Z type bucket elevator. The weigher calculates the optimal combination of weighing buckets to achieve target weight with minimum giveaway. Accuracy is plus or minus 0.5 to 2 grams for typical snack products. The weigher discharges directly into the doypack packing machine filling station.

Doypack Packing Machine – Rotary Type
The doypacks are automatically picked from a magazine, opened by suction cups combined with a bottom spreader that pushes open the gusset, filled by the weigher discharge, then sealed. Our rotary doypack packing machine operates at 40 to 80 doypacks per minute for standard stand-up pouches, or up to 100 doypacks per minute for smaller pouches. The doypack packing machine handles zipper doypacks, spouted doypacks, flat bottom doypacks, and three-side seal doypacks.

Checkweigher for Doypack Quality Control
After sealing on the doypack packing machine, every doypack passes through a checkweigher. This in motion scale weighs each finished doypack at full line speed. If a doypack is underweight or overweight, the checkweigher sends a rejection signal. A pneumatic air blast or pusher arm removes the out of spec doypack from the doypack packing line automatically.

Metal Detector for Doypack Safety
Following the checkweigher, a metal detector inspects each doypack for ferrous, non ferrous, and stainless steel contaminants. Sensitivity is typically 0.5 to 1.0 millimeters for ferrous metals depending on product effect. The metal detector is integrated with the rejection system so contaminated doypacks are automatically removed from the doypack packing line.

Cartoner for Finished Doypack Packing
The last component is an automatic cartoner that loads finished doypacks into pre erected cartons. The cartoner erects flat carton blanks, inserts the required number of doypacks (for example, 12 doypacks per carton), applies glue or tucks the flap, and closes the carton. Speeds match the doypack packing machine output. An optional date coder prints lot number and expiry date on the carton.

Central Control and Data Reporting for Doypack Packing Line

All doypack packing line components are controlled from a central touch screen panel. One operator can monitor the entire doypack packing line. The system records production counts, rejects by reason (underweight, metal detected, doypack open error), and machine efficiency. Data can be exported via USB or transmitted to your factory ERP system.

Line Layout Options for Doypack Packing

We offer three typical layouts for doypack packing lines. The straight line layout places all machines in a single line. This is best for long, narrow factory spaces. The L shape layout turns the doypack packing line 90 degrees after the doypack packing machine, saving space. The U shape layout brings the cartoner back alongside the doypack packing machine, allowing one operator to manage both ends.

Why Choose Our Integrated Doypack Packing Line

A fully integrated doypack packing line reduces labor cost by replacing multiple manual operators with one machine minder. It improves doypack quality consistency by removing human variability in fill weight and seal quality. Real time rejection data helps you identify upstream problems before they create large amounts of waste. Our team handles full doypack packing line integration including conveyor connections, electrical interlocking, and PLC programming. We provide doypack packing line acceptance testing at our factory before shipping.

Typical Industries Using Doypack Packing Lines
Large snack food manufacturers, pet food producers, frozen vegetable packers, coffee roasters with high volume, nut processing plants, and contract packers serving major retailers.

Contact us with your target doypack output per minute and product characteristics. Our engineering team will design a doypack packing line layout and provide a complete quotation for all integrated components.
